How UPI Works and How to Test UPI Systems

January 18, 2026
12 minutes
How UPI Works and How to Test UPI Systems

How UPI Works and How to Test UPI Systems

A Practical Guide for Engineers, Testers, and Product Teams





Introduction

Unified Payments Interface (UPI) has transformed digital payments in India. From paying a vegetable vendor to handling enterprise-scale merchant transactions, UPI processes billions of transactions every month with near real-time settlement.

Behind this simplicity lies a complex, highly regulated, distributed system involving banks, apps, networks, and security layers.
In this blog, we’ll cover:

  1. How UPI works end-to-end

  2. Key components of the UPI ecosystem

  3. Transaction flows (P2P & Merchant)

  4. Common failure scenarios

  5. How to test UPI systems thoroughly

  6. Test cases, tools, and best practices

What Is UPI?

UPI is a real-time payment system developed by National Payments Corporation of India (NPCI) that enables instant bank-to-bank transfers using a mobile device.

Popular UPI apps include:

  • Google Pay

  • PhonePe

  • Paytm

  • BHIM

Key Components of the UPI Ecosystem



1. UPI App (PSP – Payment Service Provider)

  • Mobile application used by customers

  • Examples: Google Pay, PhonePe, Paytm

  • Handles UI, authentication, and request initiation

2. Issuer Bank

  • Customer’s bank

  • Verifies balance, authenticates UPI PIN, debits amount

3. Acquirer Bank

  • Merchant’s bank

  • Credits merchant account

4. NPCI (UPI Switch)

  • Routes transactions

  • Performs validations

  • Manages settlement and reconciliation

5. Merchant

  • Individual or business accepting payments

  • Identified via UPI ID or QR code

How a UPI Transaction Works (Step-by-Step)

Example: Person-to-Person (P2P) Payment



  1. User enters UPI ID or selects contact

  2. Amount is entered

  3. UPI app sends request to NPCI

  4. NPCI routes to payer’s bank

  5. User enters UPI PIN

  6. Issuer bank validates:

    • PIN

    • Balance

    • Account status

  7. Amount is debited

  8. NPCI routes success response

  9. Payee bank credits amount instantly

  10. User receives confirmation

⏱️ Typical time: 2–5 seconds

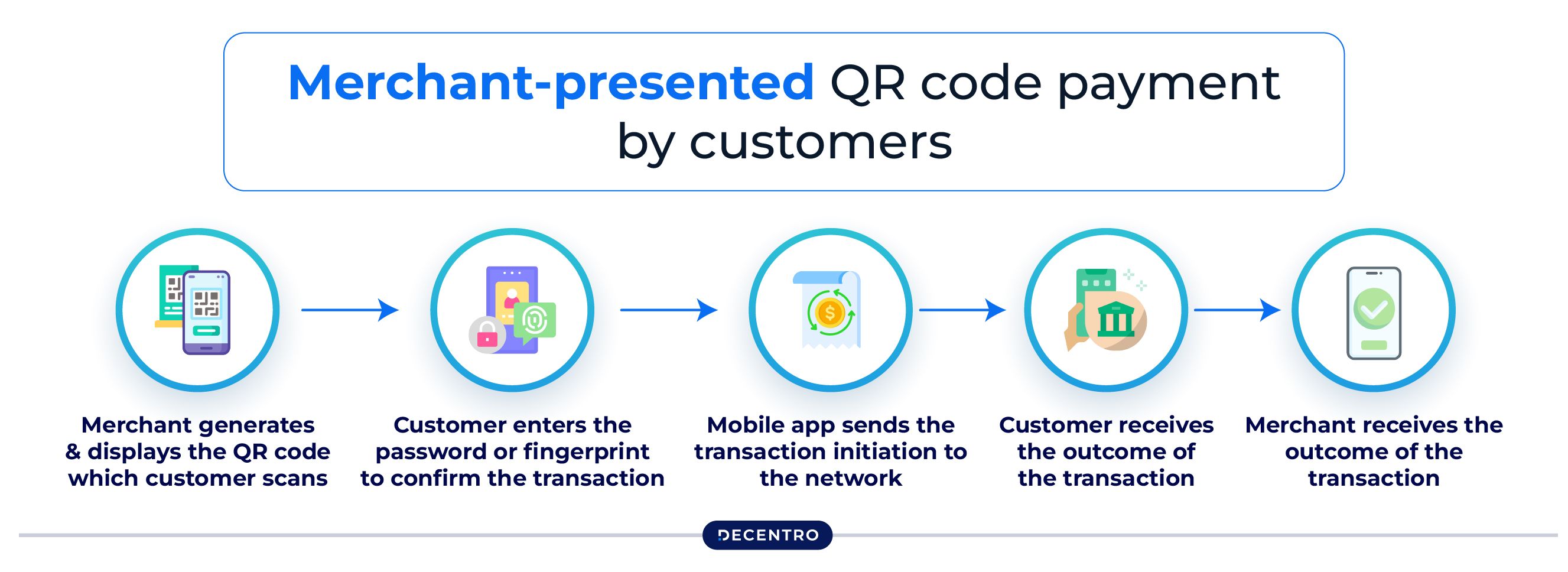

Merchant Payment Flow (QR-Based)



  1. Merchant displays static or dynamic QR

  2. Customer scans QR

  3. App fetches merchant details

  4. Amount entered or auto-filled

  5. PIN authentication

  6. Debit → Credit → Confirmation

Types of UPI Transactions

TypeDescriptionP2PPerson to PersonP2MPerson to MerchantCollect RequestPayee initiates requestAutoPayRecurring mandateQR PaymentsScan & PayIntent FlowApp-to-app payment

Common UPI Failure Scenarios

Understanding failures is critical for testing.

ScenarioExampleNetwork timeoutApp shows “Pending”Bank downtimeTransaction declinedInsufficient balanceDebit failureWrong PINAuthentication errorNPCI latencyDelayed confirmationDuplicate requestIdempotency issueReversal failureAmount stuck

How to Test UPI Systems



1. Functional Testing

Key Areas:

  • UPI ID validation

  • Bank linking

  • PIN creation & reset

  • Pay / Collect / QR flows

  • Transaction history

Sample Test Cases

  • Valid UPI ID + sufficient balance → Success

  • Invalid PIN → Failure with correct error code

  • Expired collect request → Auto-cancel

  • Duplicate request ID → Rejected

2. API Testing

UPI apps communicate with:

  • Bank APIs

  • NPCI APIs

  • PSP internal services

What to Test:

  • Request/response schema

  • Encryption & signatures

  • Idempotency keys

  • Error codes mapping

  • Retry logic

🛠️ Tools:

  • Postman

  • REST clients

  • Mock servers

  • Bank-provided simulators

3. Security Testing (Critical)

UPI is a financial system—security testing is non-negotiable.

Test Areas:

  • UPI PIN encryption

  • Man-in-the-middle attacks

  • Replay attacks

  • Session timeout

  • Rooted / jailbroken device detection

  • Rate limiting for PIN attempts

4. Performance & Load Testing

UPI peaks during:

  • Festive sales

  • Bill due dates

  • Flash merchant offers

Test Scenarios:

  • 10x traffic spike

  • Concurrent PIN validations

  • NPCI latency simulation

  • Bank response delays

Metrics to monitor:

  • TPS

  • Success rate

  • Average response time

  • Pending vs completed ratio

5. Failure & Reconciliation Testing

One of the most important yet ignored areas.

Test:

  • Debit success, credit failure

  • NPCI success, app timeout

  • Bank success, app crash

  • Auto-reversal timelines

  • Manual reconciliation flows

6. Compliance & Certification Testing

UPI apps must pass:

  • NPCI certification

  • Bank certification

  • Annual audits

Includes:

  • Functional scripts

  • Security validation

  • Regression cycles

  • Production sign-off

UPI Testing Checklist (Quick Reference)

✔ UPI ID creation
✔ Multiple bank accounts
✔ PIN lifecycle
✔ Success & failure paths
✔ Pending → success conversion
✔ Reversal flows
✔ Merchant settlements
✔ AutoPay mandates
✔ Localization & language
✔ Accessibility & UX

Best Practices for UPI Testing

  • Always test bank downtime scenarios

  • Validate error messages, not just failures

  • Track transaction IDs end-to-end

  • Simulate real user behavior

  • Monitor pending state handling

  • Include production-like latency

Conclusion

UPI may look simple on the surface, but it’s one of the most complex real-time payment systems in production today.
Testing UPI requires:

  • Strong understanding of payment flows

  • Deep focus on failure handling

  • Robust security & performance testing

A well-tested UPI system directly translates to:
✅ Higher success rate
✅ Fewer customer complaints
✅ Faster settlements
✅ Regulatory confidence
